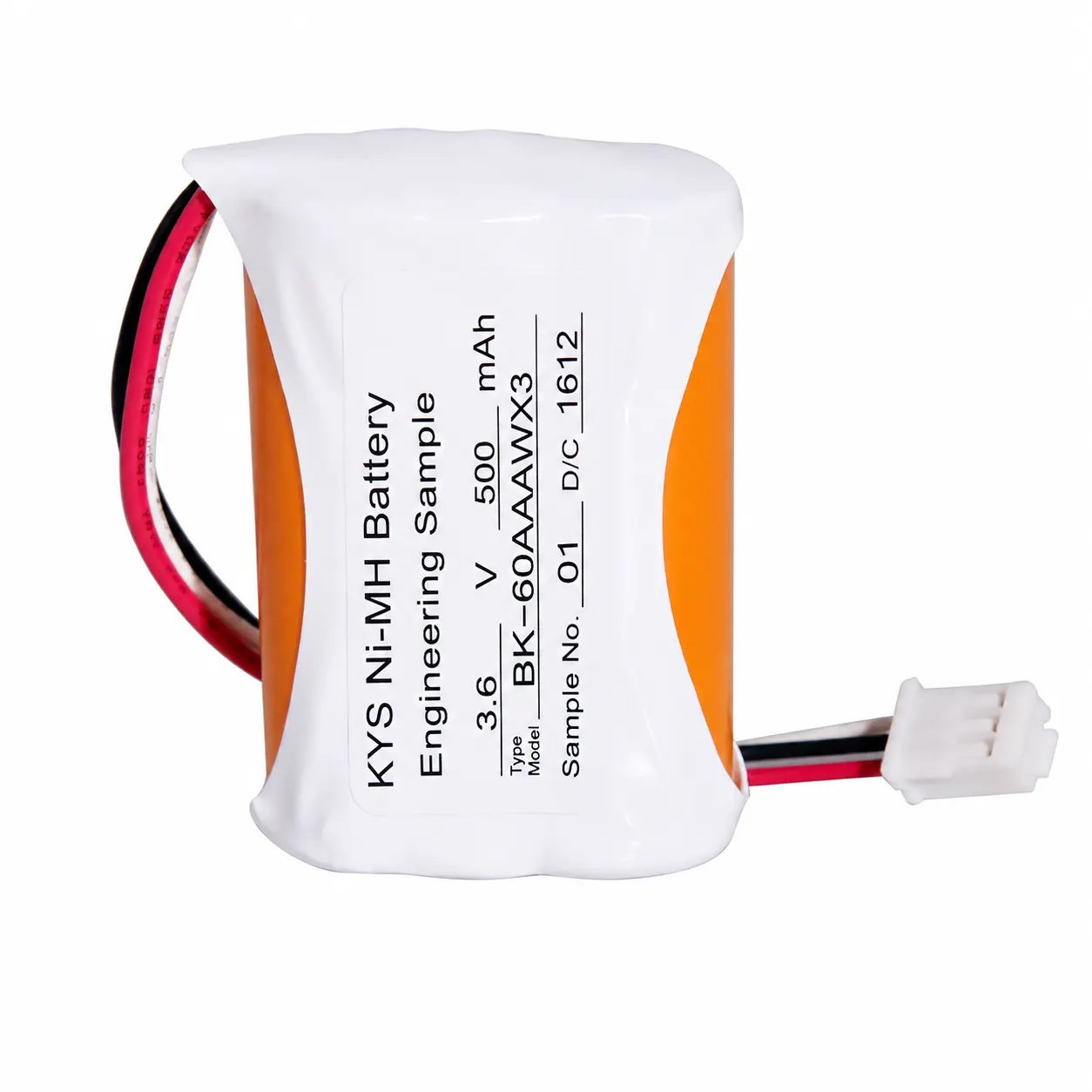

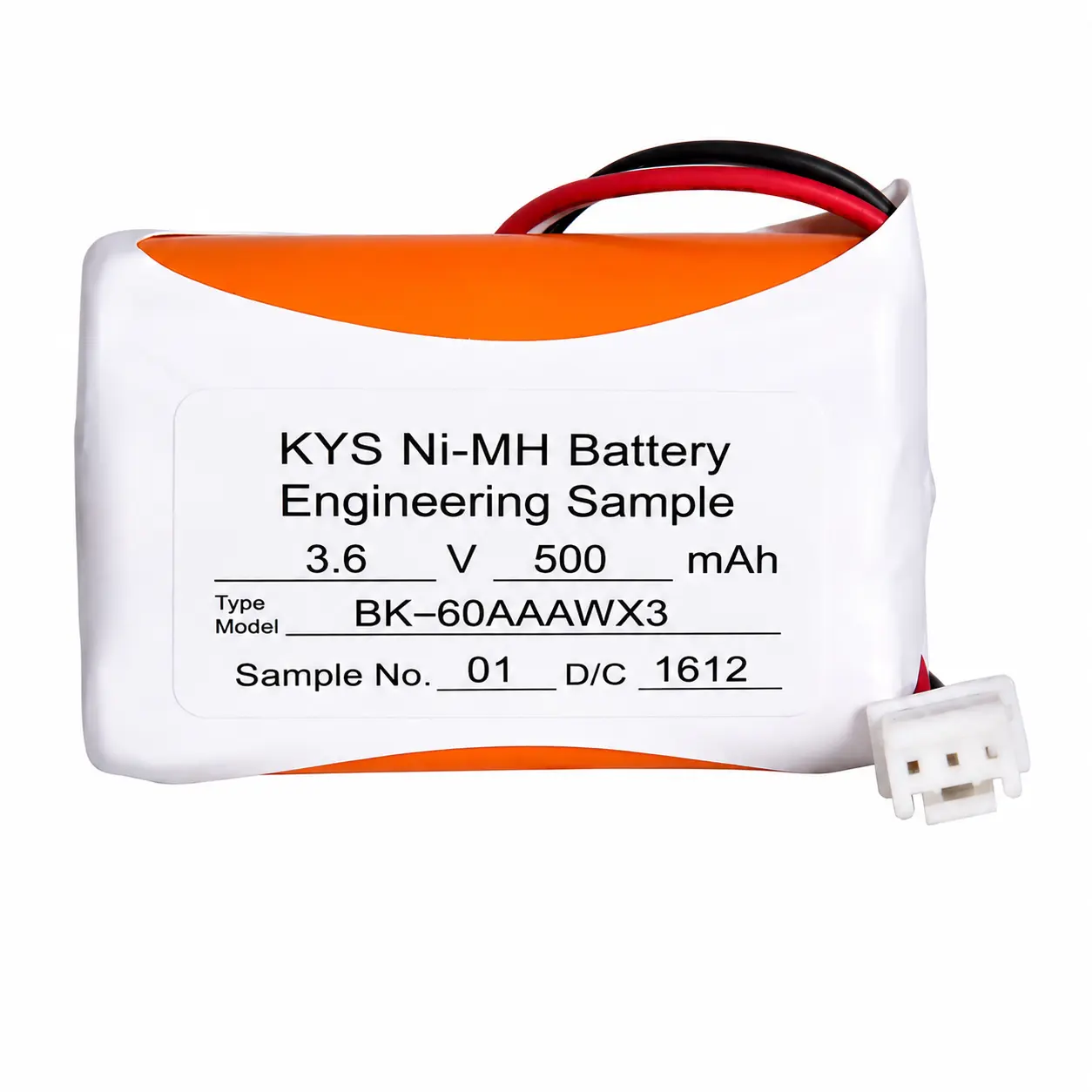

وطن / بطارية Ni-MH بدرجة حرارة عريضة بسعة 3.6 فولت 500 مللي أمبير لوحدة حوسبة مركبات TBOX
3.6V 500mAh wide-temperature Ni-MH battery specially designed for TBOX vehicle computing units. It provides stable backup power for automotive electronics, GPS tracking, telematics, and communication systems, ensuring reliable performance in both high and low temperature environments.
What's in the Box
| مواصفات | تفاصيل |
|---|---|
| الجهد الاسمي | 3.6V |
| Nominal Capacity | 500mAh |
| حجم البطارية | 11 × 33 × 48 mm |
| Charging Temperature | -20°C إلى 60°C |
| Discharge Temperature | -20°C to 85°C |
استخبار
العودة إلى قائمة المنتجات
نظرة عامة
The 3.6V 500mAh Wide-Temperature Ni-MH Battery is specially designed for TBOX vehicle computing units, delivering stable and reliable power in harsh automotive environments. With excellent high and low temperature performance, this battery supports long service life, safe operation, and consistent energy output. Its compact design makes it ideal for automotive electronics, telematics systems, GPS tracking, and vehicle communication devices.
Multi-scenario Adaptation
Remote Control
Toy
Keyboard
Alarm Clock
Shaver
Water Heater
Gas Stove
Gas Meter
Parking Lock
Flashlight
Blood Pressure Monitor
Microphone
تفاصيل المنتج
| الميزات الرئيسية | تفاصيل |
|---|---|
| Low-Temperature Discharge | Supports discharge from -20°C to 85°C |
| Low-Temperature Charging | Supports charging from -20°C to 60°C |
| Wide-Temperature Storage | Supports storage from -40°C to 85°C |
| دورة الحياة | More than 1000 charge/discharge cycles |
Product Specification
| تفاصيل المنتج | Specifications |
|---|---|
| Battery Specification | NI-MH AAA 500mAh 3.6V |
| Cell Model | NI-MH AAA 500mAh 1.2V |
| PTC | 260PTC |
| Protection Circuit | Without Protection Circuit |
| الجهد الاسمي | 3.6 V |
| Nominal Capacity | 500 mAh |
| حجم البطارية | 11 × 33 × 48 mm |
| المقاومة الداخلية | ≤ 180 mΩ |
| Battery Weight | 80 g |
| Charging Conditions | 50 mA × 16 hours / 250 mA × 2.4 hours |
| Continuous Discharge Current | 1.0 A |
| Protection Current | 5.2 A (260PTC) |
| جهد الشحن | 4.5 V |
| Cut-off Discharge Voltage | 3.0 V |
| دورة الحياة | ≥ 1000 cycles (0.5C charge / 1.0C discharge, remaining capacity ≥ 60%) |
| Charging Temperature | -20°C إلى 60°C |
| Discharge Temperature | -20°C to 85°C |
| درجة حرارة التخزين | -40°C to 85°C |
