بطارية 111640 كيس بوليمر ليثيوم

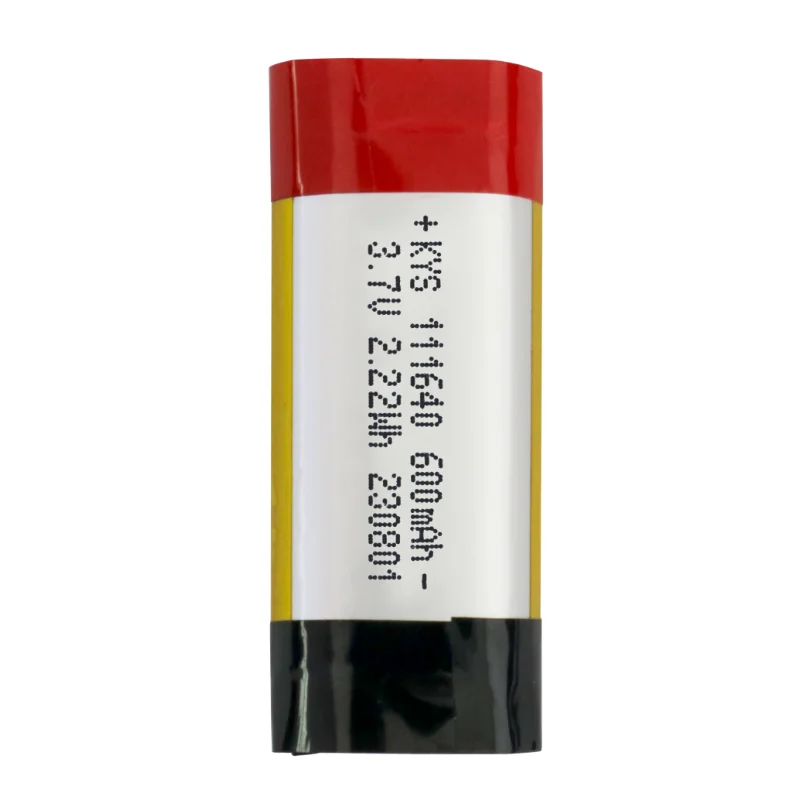

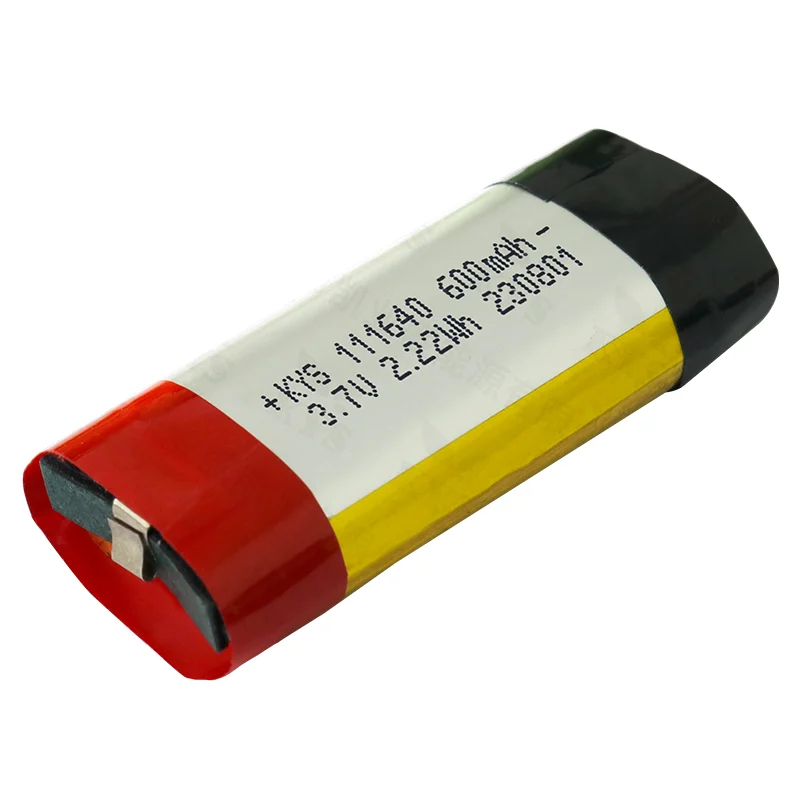

Lithium Polymer Pouch Battery Structure Description

Manufacturers construct the lithium polymer pouch battery with tabs on opposite ends by stacking electrode layers inside an aluminum-plastic pouch. First, they align cathode and anode sheets in a precise staggered layout, and they insert a microporous separator between them to maintain electrical isolation. Then, engineers extend current collector tabs toward opposite directions, and they fix the alignment during the stacking process. After that, workers place the completed electrode assembly into the pouch casing and adjust its position carefully before sealing preparation begins.

Material Composition and Layer Design

Producers coat lithium metal oxide materials onto aluminum foil to form the cathode layer, and they apply graphite-based slurry onto copper foil to create the anode layer. Meanwhile, they introduce a polyethylene and polypropylene multilayer separator to support ion transport while blocking internal contact. In addition, they select aluminum-plastic composite film as the outer enclosure material, and this structure combines barrier protection with mechanical flexibility. Next, technicians inject lithium salt electrolyte dissolved in organic carbonate solvents, and they ensure uniform penetration across all electrode surfaces.

Electrode Tab Configuration and Connection Method

Engineers position aluminum cathode tabs and copper or nickel-coated anode tabs at opposite ends of the cell. Then, they weld the tabs to the current collectors using ultrasonic or resistance welding equipment. At the same time, they reinforce the tab exit area with insulation materials to prevent edge shorting. After welding, operators route the tabs out of the pouch carefully, and they verify alignment to avoid stress on internal layers before sealing.

Standards and Manufacturing Control System

Quality teams follow IEC 62133 and UN38.3 standards throughout production. They inspect dimensions, test weld strength, and measure insulation resistance at multiple stages. In addition, they grade capacity and match internal resistance to maintain batch consistency. Finally, they run vibration, thermal shock, and high-temperature storage tests, and they verify that each cell meets required safety and manufacturing specifications.

ميزات المنتج

1. 🛠️ Customizable
   Customizable to meet customer requirements
2. ⚡ High Power
   Max. 20C discharge rate available
3. ⏱️ Long Cycle Life
   Meets long-term product usage needs
4. 🛡️ High Safety
   Passed comprehensive safety tests
5. 🔋 True Rated Capacity
   Matches the product design capacity
6. ⚛️ Multi-Chemistry Options
   Covers LCO, NCM, NCA and LFP systems
7. 🧰 Multi-Protection Mechanism
   Built-in protection board with overcharge, overdischarge, overcurrent and short-circuit protection

مجالات تطبيق المنتج

This product is suitable for a variety of portable and powered electronic devices, with typical applications including:

• Personal Care & Health: Electric Toothbrushes, Beauty Devices, Fitness Trackers, Medical Devices

• Smart Digital & Audio: Headphones, Speakers, Nebulizers, Toys, Lights

• Financial Payment & Office: POS Machines, USB Tokens, Portable Printers
